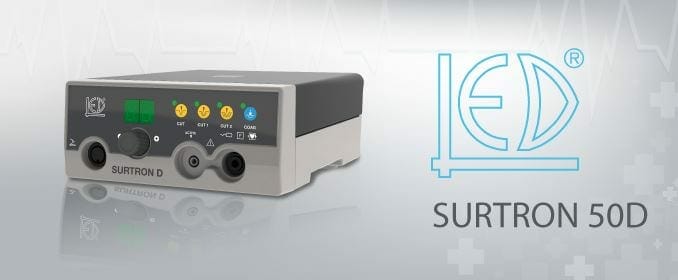

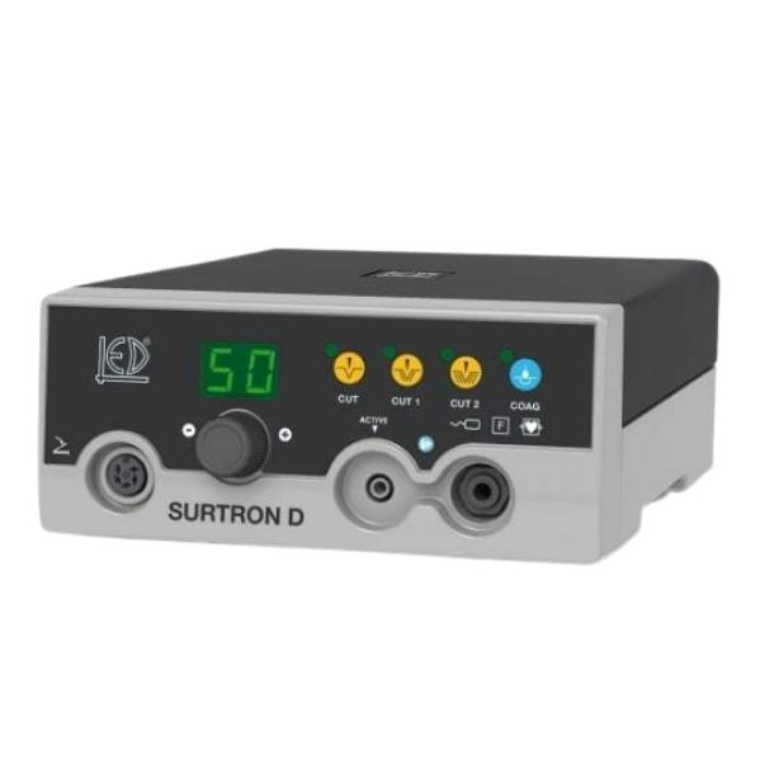

Surtron Diathermy 50D

Diathermy 50D Surtron

Diathermy 50D CHARACTERISTICS

Surtron Diathermy 50D through the functions selection makes possible pure cut, coagulation cut, and pure coagulation. The digital display of power erogation allows safety and very reproducible applications.

50 D permits use a professional surgery thanks to the stability functions and the safety system adopted.

• Working frequency: 600 kHz
• Mains voltage (Vac) :115-230
• Mains frequency :Hz 50-60
• Electrical class (EN60601-1) I CF
• Maximum output power CUT (W) 50
• Kit of assorted electrode length 5cm (10pcs) •/1
• Manual of instructions •/1
• Power supply cable 3x1mm SIE-IEC – 2mt •/1
• Not water-proof foot switch •/1

SURTRON 50D is a radiofrequency electrosurgical unit suitable for minor monopolar surgery. SURTRON 50D through the function’s selection makes pure cut, cut coagulation (CUT 1 – CUT 2) and pure coagulation possible. The on-board microcontroller and digital display guarantee consistent safety and reliability under any conditions. It also offers outstanding professional surgical results due to its ergonomic and superior safety features.

FEATURES surtron 50d diathermyelectrosurgery unit
Max output power CUT 50 W – 400 Ω
Max output power CUT/COAG1 45 W – 400 Ω
Maxi output power CUT/COAG2 40 W – 400 Ω
Maximum output power COAG 40 W – 400 Ω
Working frequency 600 kHz
Patient circuit F
Selectable input voltage 115/230 Vac
Mains frequency 50-60 Hz
Electrical input power 200 VA
Size WxHxD 190x85x239 mm
Weight 2,5 Kgs

CONTROLS led surtron 50d
Output power monitoring
Self check control

Electrical Class: I CF
MDD 93/42/EC Class: II b
