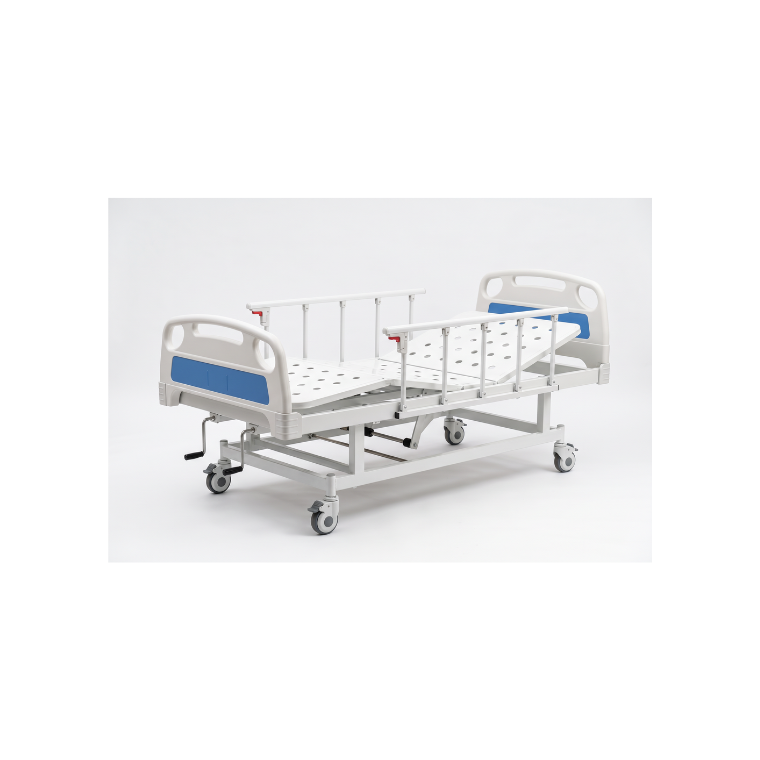

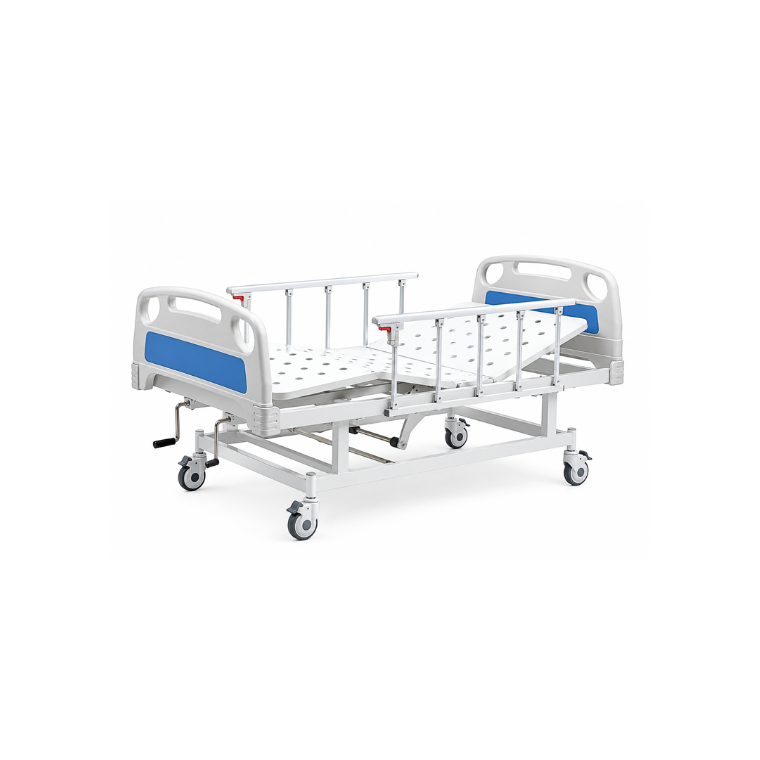

2 Function fixed Manuel Bed | DW-MB02

2 Function fixed Manuel Bed | DW-MB02

Height bed With drip
pole

135 kg safe working load
Box 2 beds 1950 x 930 x 180
mm
80 kg 2 beds
Box 1 sets head and foot
970 x 230 x 480 mm
5 kg 1 x set head and foot
ends

Technical parameters

External size (LxWxH):                    1950x930x490 mm
Mattress platform:                          1880×840 mm
Safe working load:                          135kg
Back-rest adjustment:                    0-75° (±10°)
Knee-rest adjustment:                    0-40° (±10°)

Technical configuration

Manual Cranks:                          2pcs
5” covered castors:                    4pcs
Foldable side rail:                       1set
ABS bed ends with safe lock:    1set
IV pole 4 hooks:                           1set
IV pole prevision:                        4pcs
Drainage hook:                           2pcs
Mattress holder:                         2pcs
